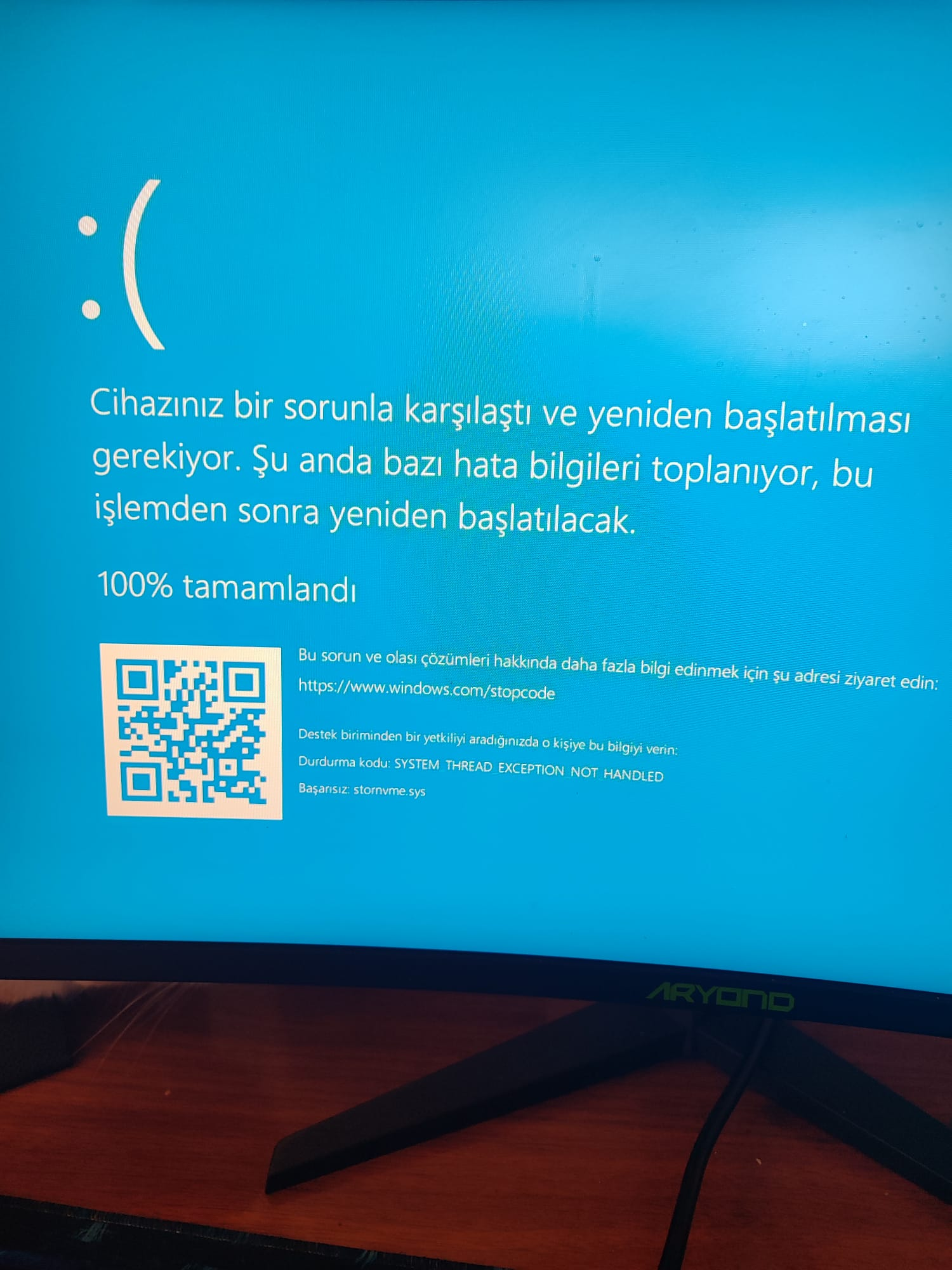

Mavi Ekran Storenvme.sys Mavi ekran hatası hk.

[JesKs]

Merhaba,

Bu ikinci alışım mavi ekranı, yeni bir sistem toplamıştım, imzamda yazan gibi.
Aşağıya ikisinin de minidump dosyasını bıraktım, sorunun sebebi nedir sizce ?
Chipset driver'ları vs kurulu,

dump.rar

drive.google.com

Mesaj otomatik birleştirildi: 4 Kasım 2024

*******************************************************************************
* *
* Bugcheck Analysis *
* *
*******************************************************************************

SYSTEM_THREAD_EXCEPTION_NOT_HANDLED (7e)
This is a very common BugCheck. Usually the exception address pinpoints
the driver/function that caused the problem. Always note this address
as well as the link date of the driver/image that contains this address.
Arguments:
Arg1: ffffffffc0000005, The exception code that was not handled
Arg2: fffff807379e46b2, The address that the exception occurred at
Arg3: ffff940b8244f098, Exception Record Address
Arg4: ffff940b8244e8d0, Context Record Address

Debugging Details:
------------------


KEY_VALUES_STRING: 1

Key : AV.Dereference
Value: NullClassPtr

Key : AV.Fault
Value: Read

Key : Analysis.CPU.mSec
Value: 1046

Key : Analysis.Elapsed.mSec
Value: 22936

Key : Analysis.IO.Other.Mb
Value: 25

Key : Analysis.IO.Read.Mb
Value: 1

Key : Analysis.IO.Write.Mb
Value: 30

Key : Analysis.Init.CPU.mSec
Value: 390

Key : Analysis.Init.Elapsed.mSec
Value: 55692

Key : Analysis.Memory.CommitPeak.Mb
Value: 102

Key : Analysis.Version.DbgEng
Value: 10.0.27725.1000

Key : Analysis.Version.Description
Value: 10.2408.27.01 amd64fre

Key : Analysis.Version.Ext
Value: 1.2408.27.1

Key : Bugcheck.Code.LegacyAPI
Value: 0x1000007e

Key : Bugcheck.Code.TargetModel
Value: 0x1000007e

Key : Failure.Bucket
Value: AV_stornvme!NVMeFirmwareDownloadCompletion

Key : Failure.Hash
Value: {7c4f62b0-08ac-dfab-6501-7b1863fdd498}

Key : WER.OS.Branch
Value: vb_release

Key : WER.OS.Version
Value: 10.0.19041.1


BUGCHECK_CODE: 7e

BUGCHECK_P1: ffffffffc0000005

BUGCHECK_P2: fffff807379e46b2

BUGCHECK_P3: ffff940b8244f098

BUGCHECK_P4: ffff940b8244e8d0

FILE_IN_CAB: 110424-15781-01.dmp

FAULTING_THREAD: ffffd00768310040

EXCEPTION_RECORD: ffff940b8244f098 -- (.exr 0xffff940b8244f098)
ExceptionAddress: fffff807379e46b2 (stornvme!NVMeFirmwareDownloadCompletion+0x0000000000000092)
ExceptionCode: c0000005 (Access violation)
ExceptionFlags: 00000000
NumberParameters: 2
Parameter[0]: 0000000000000000
Parameter[1]: 000000000000000e
Attempt to read from address 000000000000000e

CONTEXT: ffff940b8244e8d0 -- (.cxr 0xffff940b8244e8d0)
rax=0000000000000008 rbx=ffffd0075c445c40 rcx=0000000000000440
rdx=ffffd0075c445c40 rsi=ffffd0075c4fa000 rdi=ffffd00768070000
rip=fffff807379e46b2 rsp=ffff940b8244f2d0 rbp=ffffd00735c22020
r8=0000000000000000 r9=ffffd00735c22020 r10=0000fffff807379e
r11=ffffa87baa800000 r12=0000000000000000 r13=000000000000000e
r14=0000000000000000 r15=ffffd00735c22020
iopl=0 nv up ei pl nz na pe nc
cs=0010 ss=0018 ds=002b es=002b fs=0053 gs=002b efl=00050202
stornvme!NVMeFirmwareDownloadCompletion+0x92:
fffff807`379e46b2 410fb7460e movzx eax,word ptr [r14+0Eh] ds:002b:00000000`0000000e=????
Resetting default scope

BLACKBOXBSD: 1 (!blackboxbsd)


BLACKBOXNTFS: 1 (!blackboxntfs)


BLACKBOXPNP: 1 (!blackboxpnp)


BLACKBOXWINLOGON: 1

CUSTOMER_CRASH_COUNT: 1

PROCESS_NAME: System

READ_ADDRESS: fffff80735efb390: Unable to get MiVisibleState
Unable to get NonPagedPoolStart
Unable to get NonPagedPoolEnd
Unable to get PagedPoolStart
Unable to get PagedPoolEnd
unable to get nt!MmSpecialPagesInUse
000000000000000e

ERROR_CODE: (NTSTATUS) 0xc0000005 - 0x%p adresindeki y nerge 0x%p adresindeki belle e ba vurdu. Bellek u olamaz %s.

EXCEPTION_CODE_STR: c0000005

EXCEPTION_PARAMETER1: 0000000000000000

EXCEPTION_PARAMETER2: 000000000000000e

EXCEPTION_STR: 0xc0000005

STACK_TEXT:
ffff940b`8244f2d0 fffff807`379dd31a : ffffd007`5c445c40 00000000`00000100 ffffd007`35c22148 00000000`000000b2 : stornvme!NVMeFirmwareDownloadCompletion+0x92
ffff940b`8244f350 fffff807`379dd887 : ffffd007`35c22020 00000000`00000000 00000000`00000000 ffffd007`5d8e660e : stornvme!NVMeCompleteSubmissionQueueRequests+0xc2
ffff940b`8244f3a0 fffff807`379de6fc : ffffd007`35c22020 00000000`00000003 ffffd007`5d8e6600 00000000`00000001 : stornvme!NVMeControllerCompleteAllIORequests+0xe3
ffff940b`8244f3f0 fffff807`379dd6ef : ffffd007`35c22020 ffffd007`35c8d050 ffffd007`5d8e6610 80000000`00002000 : stornvme!NVMeControllerReset+0x78
ffff940b`8244f420 fffff807`37a3a245 : ffffd007`5d8e6610 ffffd007`35c8d050 ffffd007`5f451040 ffffd007`32f6ea60 : stornvme!NVMeControllerAsyncResetWorker+0x3f
ffff940b`8244f450 fffff807`35543ea5 : ffffd007`5e164d10 ffffd007`5e164d10 ffffd007`35c8d050 fffff807`373bc660 : storport!StorPortWorkItemRoutine+0x45
ffff940b`8244f480 fffff807`35422525 : ffffd007`68310040 ffffd007`68310040 fffff807`35543d70 00000000`00000000 : nt!IopProcessWorkItem+0x135
ffff940b`8244f4f0 fffff807`35529905 : ffffd007`68310040 00000000`00000080 ffffd007`32f801c0 00000000`00000000 : nt!ExpWorkerThread+0x105
ffff940b`8244f590 fffff807`35607318 : ffffb881`73440180 ffffd007`68310040 fffff807`355298b0 fffff807`355fe4bd : nt!PspSystemThreadStartup+0x55
ffff940b`8244f5e0 00000000`00000000 : ffff940b`82450000 ffff940b`82449000 00000000`00000000 00000000`00000000 : nt!KiStartSystemThread+0x28


SYMBOL_NAME: stornvme!NVMeFirmwareDownloadCompletion+92

MODULE_NAME: stornvme

IMAGE_NAME: stornvme.sys

IMAGE_VERSION: 10.0.19041.5072

STACK_COMMAND: .cxr 0xffff940b8244e8d0 ; kb

BUCKET_ID_FUNC_OFFSET: 92

FAILURE_BUCKET_ID: AV_stornvme!NVMeFirmwareDownloadCompletion

OS_VERSION: 10.0.19041.1

BUILDLAB_STR: vb_release

OSPLATFORM_TYPE: x64

OSNAME: Windows 10

FAILURE_ID_HASH: {7c4f62b0-08ac-dfab-6501-7b1863fdd498}

Followup: MachineOwner
---------



[Emre Zengin]

Merhaba,

Bu ikinci alışım mavi ekranı, yeni bir sistem toplamıştım, imzamda yazan gibi.
Aşağıya ikisinin de minidump dosyasını bıraktım, sorunun sebebi nedir sizce ?
Chipset driver'ları vs kurulu,

dump.rar

drive.google.com

Mesaj otomatik birleştirildi: 4 Kasım 2024

*******************************************************************************
* *
* Bugcheck Analysis *
* *
*******************************************************************************

SYSTEM_THREAD_EXCEPTION_NOT_HANDLED (7e)
This is a very common BugCheck. Usually the exception address pinpoints
the driver/function that caused the problem. Always note this address
as well as the link date of the driver/image that contains this address.
Arguments:
Arg1: ffffffffc0000005, The exception code that was not handled
Arg2: fffff807379e46b2, The address that the exception occurred at
Arg3: ffff940b8244f098, Exception Record Address
Arg4: ffff940b8244e8d0, Context Record Address

Debugging Details:
------------------


KEY_VALUES_STRING: 1

Key : AV.Dereference
Value: NullClassPtr

Key : AV.Fault
Value: Read

Key : Analysis.CPU.mSec
Value: 1046

Key : Analysis.Elapsed.mSec
Value: 22936

Key : Analysis.IO.Other.Mb
Value: 25

Key : Analysis.IO.Read.Mb
Value: 1

Key : Analysis.IO.Write.Mb
Value: 30

Key : Analysis.Init.CPU.mSec
Value: 390

Key : Analysis.Init.Elapsed.mSec
Value: 55692

Key : Analysis.Memory.CommitPeak.Mb
Value: 102

Key : Analysis.Version.DbgEng
Value: 10.0.27725.1000

Key : Analysis.Version.Description
Value: 10.2408.27.01 amd64fre

Key : Analysis.Version.Ext
Value: 1.2408.27.1

Key : Bugcheck.Code.LegacyAPI
Value: 0x1000007e

Key : Bugcheck.Code.TargetModel
Value: 0x1000007e

Key : Failure.Bucket
Value: AV_stornvme!NVMeFirmwareDownloadCompletion

Key : Failure.Hash
Value: {7c4f62b0-08ac-dfab-6501-7b1863fdd498}

Key : WER.OS.Branch
Value: vb_release

Key : WER.OS.Version
Value: 10.0.19041.1


BUGCHECK_CODE: 7e

BUGCHECK_P1: ffffffffc0000005

BUGCHECK_P2: fffff807379e46b2

BUGCHECK_P3: ffff940b8244f098

BUGCHECK_P4: ffff940b8244e8d0

FILE_IN_CAB: 110424-15781-01.dmp

FAULTING_THREAD: ffffd00768310040

EXCEPTION_RECORD: ffff940b8244f098 -- (.exr 0xffff940b8244f098)
ExceptionAddress: fffff807379e46b2 (stornvme!NVMeFirmwareDownloadCompletion+0x0000000000000092)
ExceptionCode: c0000005 (Access violation)
ExceptionFlags: 00000000
NumberParameters: 2
Parameter[0]: 0000000000000000
Parameter[1]: 000000000000000e
Attempt to read from address 000000000000000e

CONTEXT: ffff940b8244e8d0 -- (.cxr 0xffff940b8244e8d0)
rax=0000000000000008 rbx=ffffd0075c445c40 rcx=0000000000000440
rdx=ffffd0075c445c40 rsi=ffffd0075c4fa000 rdi=ffffd00768070000
rip=fffff807379e46b2 rsp=ffff940b8244f2d0 rbp=ffffd00735c22020
r8=0000000000000000 r9=ffffd00735c22020 r10=0000fffff807379e
r11=ffffa87baa800000 r12=0000000000000000 r13=000000000000000e
r14=0000000000000000 r15=ffffd00735c22020
iopl=0 nv up ei pl nz na pe nc
cs=0010 ss=0018 ds=002b es=002b fs=0053 gs=002b efl=00050202
stornvme!NVMeFirmwareDownloadCompletion+0x92:
fffff807`379e46b2 410fb7460e movzx eax,word ptr [r14+0Eh] ds:002b:00000000`0000000e=????
Resetting default scope

BLACKBOXBSD: 1 (!blackboxbsd)


BLACKBOXNTFS: 1 (!blackboxntfs)


BLACKBOXPNP: 1 (!blackboxpnp)


BLACKBOXWINLOGON: 1

CUSTOMER_CRASH_COUNT: 1

PROCESS_NAME: System

READ_ADDRESS: fffff80735efb390: Unable to get MiVisibleState
Unable to get NonPagedPoolStart
Unable to get NonPagedPoolEnd
Unable to get PagedPoolStart
Unable to get PagedPoolEnd
unable to get nt!MmSpecialPagesInUse
000000000000000e

ERROR_CODE: (NTSTATUS) 0xc0000005 - 0x%p adresindeki y nerge 0x%p adresindeki belle e ba vurdu. Bellek u olamaz %s.

EXCEPTION_CODE_STR: c0000005

EXCEPTION_PARAMETER1: 0000000000000000

EXCEPTION_PARAMETER2: 000000000000000e

EXCEPTION_STR: 0xc0000005

STACK_TEXT:
ffff940b`8244f2d0 fffff807`379dd31a : ffffd007`5c445c40 00000000`00000100 ffffd007`35c22148 00000000`000000b2 : stornvme!NVMeFirmwareDownloadCompletion+0x92
ffff940b`8244f350 fffff807`379dd887 : ffffd007`35c22020 00000000`00000000 00000000`00000000 ffffd007`5d8e660e : stornvme!NVMeCompleteSubmissionQueueRequests+0xc2
ffff940b`8244f3a0 fffff807`379de6fc : ffffd007`35c22020 00000000`00000003 ffffd007`5d8e6600 00000000`00000001 : stornvme!NVMeControllerCompleteAllIORequests+0xe3
ffff940b`8244f3f0 fffff807`379dd6ef : ffffd007`35c22020 ffffd007`35c8d050 ffffd007`5d8e6610 80000000`00002000 : stornvme!NVMeControllerReset+0x78
ffff940b`8244f420 fffff807`37a3a245 : ffffd007`5d8e6610 ffffd007`35c8d050 ffffd007`5f451040 ffffd007`32f6ea60 : stornvme!NVMeControllerAsyncResetWorker+0x3f
ffff940b`8244f450 fffff807`35543ea5 : ffffd007`5e164d10 ffffd007`5e164d10 ffffd007`35c8d050 fffff807`373bc660 : storport!StorPortWorkItemRoutine+0x45
ffff940b`8244f480 fffff807`35422525 : ffffd007`68310040 ffffd007`68310040 fffff807`35543d70 00000000`00000000 : nt!IopProcessWorkItem+0x135
ffff940b`8244f4f0 fffff807`35529905 : ffffd007`68310040 00000000`00000080 ffffd007`32f801c0 00000000`00000000 : nt!ExpWorkerThread+0x105
ffff940b`8244f590 fffff807`35607318 : ffffb881`73440180 ffffd007`68310040 fffff807`355298b0 fffff807`355fe4bd : nt!PspSystemThreadStartup+0x55
ffff940b`8244f5e0 00000000`00000000 : ffff940b`82450000 ffff940b`82449000 00000000`00000000 00000000`00000000 : nt!KiStartSystemThread+0x28


SYMBOL_NAME: stornvme!NVMeFirmwareDownloadCompletion+92

MODULE_NAME: stornvme

IMAGE_NAME: stornvme.sys

IMAGE_VERSION: 10.0.19041.5072

STACK_COMMAND: .cxr 0xffff940b8244e8d0 ; kb

BUCKET_ID_FUNC_OFFSET: 92

FAILURE_BUCKET_ID: AV_stornvme!NVMeFirmwareDownloadCompletion

OS_VERSION: 10.0.19041.1

BUILDLAB_STR: vb_release

OSPLATFORM_TYPE: x64

OSNAME: Windows 10

FAILURE_ID_HASH: {7c4f62b0-08ac-dfab-6501-7b1863fdd498}

Followup: MachineOwner
---------

- MSI Center'ı kaldır.
- BIOS'u güncelle:
1) Öncelikle elinde bir tane 8 ya da 16 GB'lık bir flash bellek olsun. Flash belleği FAT32 olarak biçimlendir,
2) Biçimlendirdikten sonra https://www.msi.com/Motherboard/PRO-B650-S-WIFI/support buradan 7E26v1G BIOS'unu indir. İndirdikten sonra klasöre çıkart ve içindeki E7E26AMS.1G0 dosyasını flash belleğinin içine at.
3) Flash belleğinin içine attıktan sonra bilgisayarı yeniden başlat ve delete tuşuna durmadan bas, BIOS ekranı gelicek, ekran geldikten sonra sol alt tarafta M-Flash modunu göreceksin ona tıkla. Tıkladıktan sonra sistem M-Flash ekranını açıcak, açtıktan sonra E7E26AMS.1G0 adlı dosyayı seçip BIOS'u güncelleyeceksin.
Not: BIOS güncellemesi sırasında elektriğin kesilmemesi gerek ve güncelleme esnasında kesinlikle flash bellek yerin çıkarılmamalı.
- BIOS'u güncelledikten sonra bu Chipset sürücüsünü indirip kur: https://www.amd.com/en/support/downloads/drivers.html/chipsets/am5/b650.html AMD Chipset Drivers yazanı indirip kur.
Bir de bu kullandığın depolama ile ilgili firmware güncellemesi var mı? Bir kontrol et.
